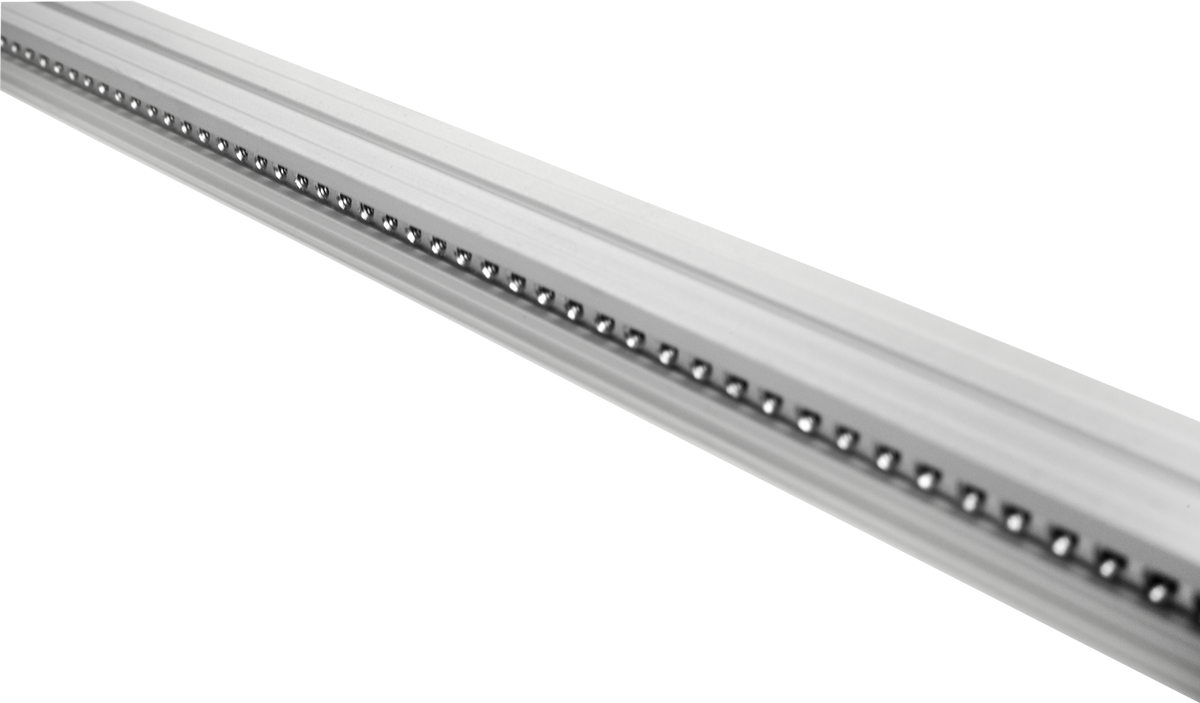

Tiptop Audio Z-Rails are mounting rails for the Eurorack modular synthesizer format and are designed to be used for professional and DIY case mounting assemblies.

Z-Rails are sold in sets of two (2) aluminum, clear or black anodized rails, each containing a Zinc plated metal threaded strip with 3mm threads at 5,08mm spacing. The rails are easy to install using Z-Ears or Z-Rail Brackets but can also be attached direct to any frame with just two M4 screws, one for each side of the individual Z-Rail. The M4 screws are not included as they are size dependent on the thickness of the material the rails will be attached to. M4 screws are included with Z-Ears and Z-Rails Brackets.

Follow these steps to make your Eurorack case:

1. Select Z-Rails length: 84HP; 104HP; 126HP; 168HP.

2. Select the Z-Rails color: clear; black.

3. Select the side attachments: Z-Ears Tabletop; Z-Ears Rackmount; Z-Rails Brackets.

4. Select the power system: uZeus; Zeus Studio Bus.
