- Two 84HP rows (6U) of Eurorack module space.
- One 84HP row for our 1U modules.
- Threaded M3 strips for mounting modules.
- Solid plastic carrying handle.
- Detachable nylon carrying strap.
- Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
- Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
- Plastic feet for resting the case on the table.
- Rubber feet on bottom side of lid so the case can stand vertically with the lid attached.
- Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together and for the carrying strap.
- Four 1/4″ audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
- MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
- USB port that connects to the µMIDI 1U and other future modules.
- Rocker switch and barrel plug for power entry.
- Max. internal depth for modules: 70mm
- Internal depth for modules above the highest point of the power bus board: 53mm
- Outside dimensions with lid: 312mm x 165mm x 445mm
- Outside dimensions without lid: 312mm x 83mm x 445mm
- Weight: 3.8 kg with lid, 4.3 kg with lid and power adapter
Video

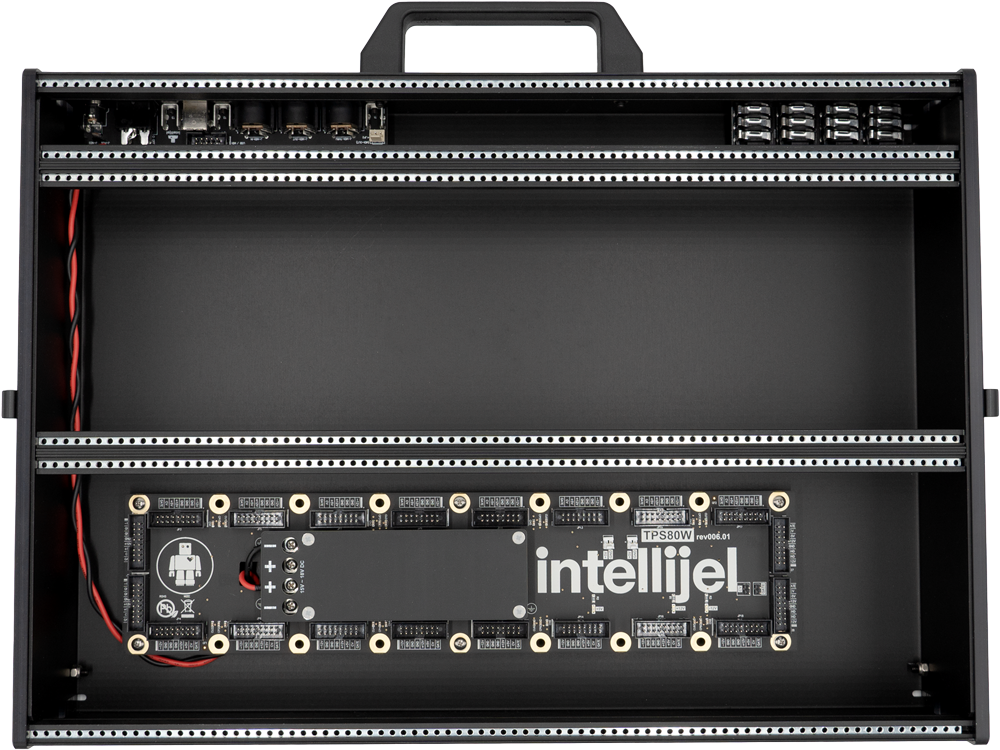

7U Performance Case 84hp (Stealth)
Description
Studio, cafe, stage, floor, coffee table—the 7U Performance case doesn't care where you play with it. Two 3U rows house and power all the modules you love (or one day hope to love), while the additional 1U row accommodates an extensive selection of specialized utility modules. Power, audio and MIDI/USB jacks on the back handle all the necessary inputs and outputs, ensuring all that rack space remains free for the "fun" modules. The lid has enough clearance to keep your system patched in transit, and two cases can be stacked with a set of joiners.
Features
Specifications
- Width: 84hp
- Power: TPS80 +12 V output at 3A, -12V output at 3A, +5V output at 1.5A
$999.00
